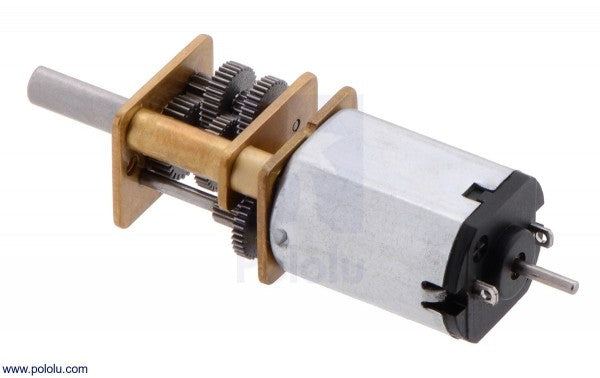

pololu gear motor 1000:1 Micro Metal Gearmotor LP 6V with Extended Motor Shaft

pololu gear motor 1000:1 Micro Metal Gearmotor LP 6V with Extended Motor ShaftThis geared motor is a small, energy efficient 6V brushed DC motor with a metal gearbox and a gear ratio of 986. 41: 1, making it ideal for applications requiring fine control at very low speeds. It has a cross section of 10 12 mm, and the D shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also features an extended motor shaft measuring 4. 5 1 mm. (Note: The stall torque and current ratings are theoretical values; stalling

This geared motor is a small, energy-efficient 6V brushed DC motor with a metal gearbox and a gear ratio of 986.41:1, making it ideal for applications requiring fine control at very low speeds. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also features an extended motor shaft measuring 4.5 × 1 mm. (Note: The stall torque and current ratings are theoretical values; stalling the motor will damage the gearbox.)

Key specifications at 6 V: 13 rpm and 20 mA no load, 5.5 kg-cm and 0.36 A when stalled.

Specifications:

• Size: 10 × 12 × 29.5 mm

• Weight: 10.5 g

• Shaft diameter: 3 mm

• Translation ratio: 986.41:1

• Idle speed at 6 V: 13 rpm

• Idle current at 6 V: 0.02 A

• Stall current at 6 V: 0.36 A

• Locking torque at 6 V: 5.5 kg·cm

• Extended motor shaft: Yes

• Motor type: 0.36A stall current at 6V (LP 6V)

Documents:

• Datasheet
